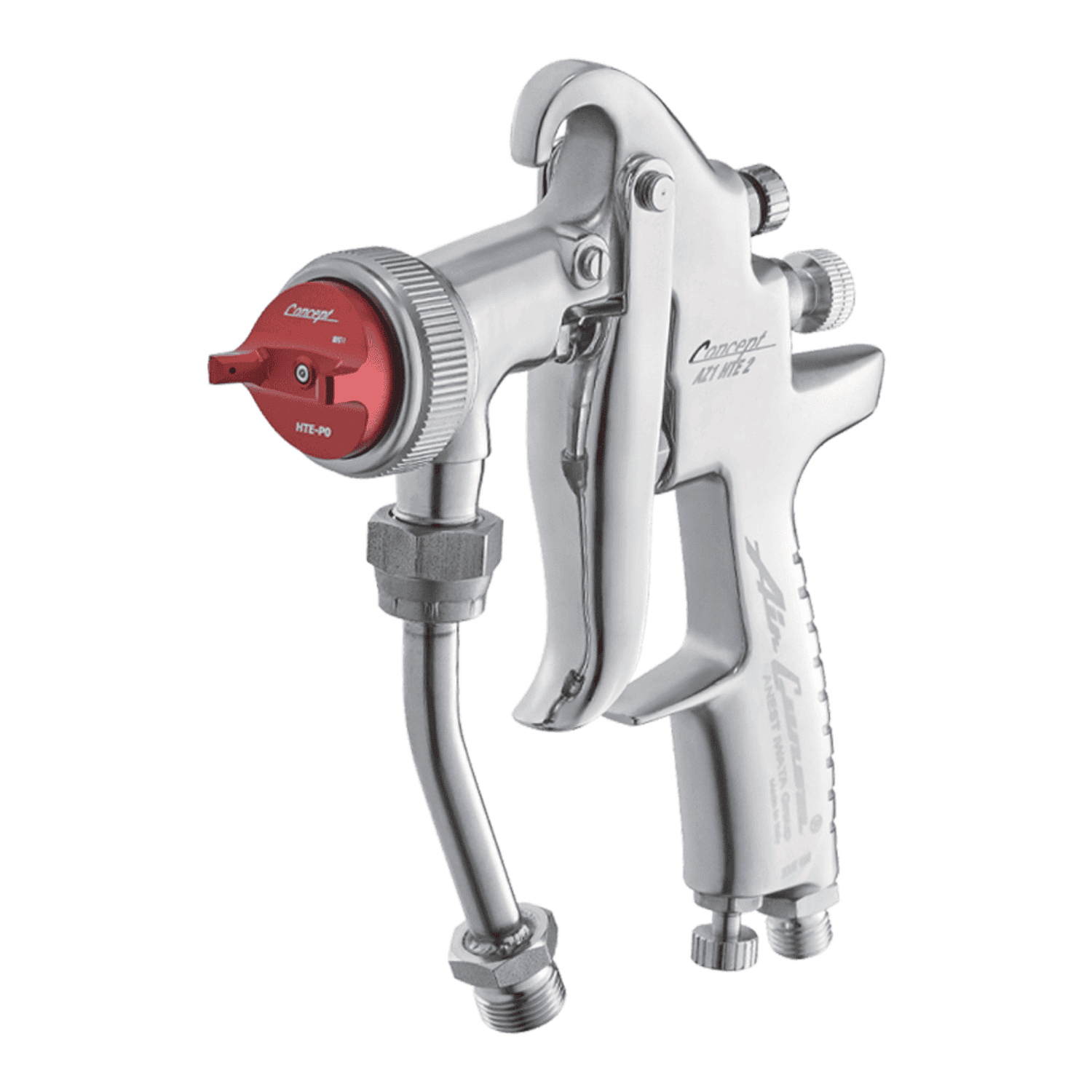

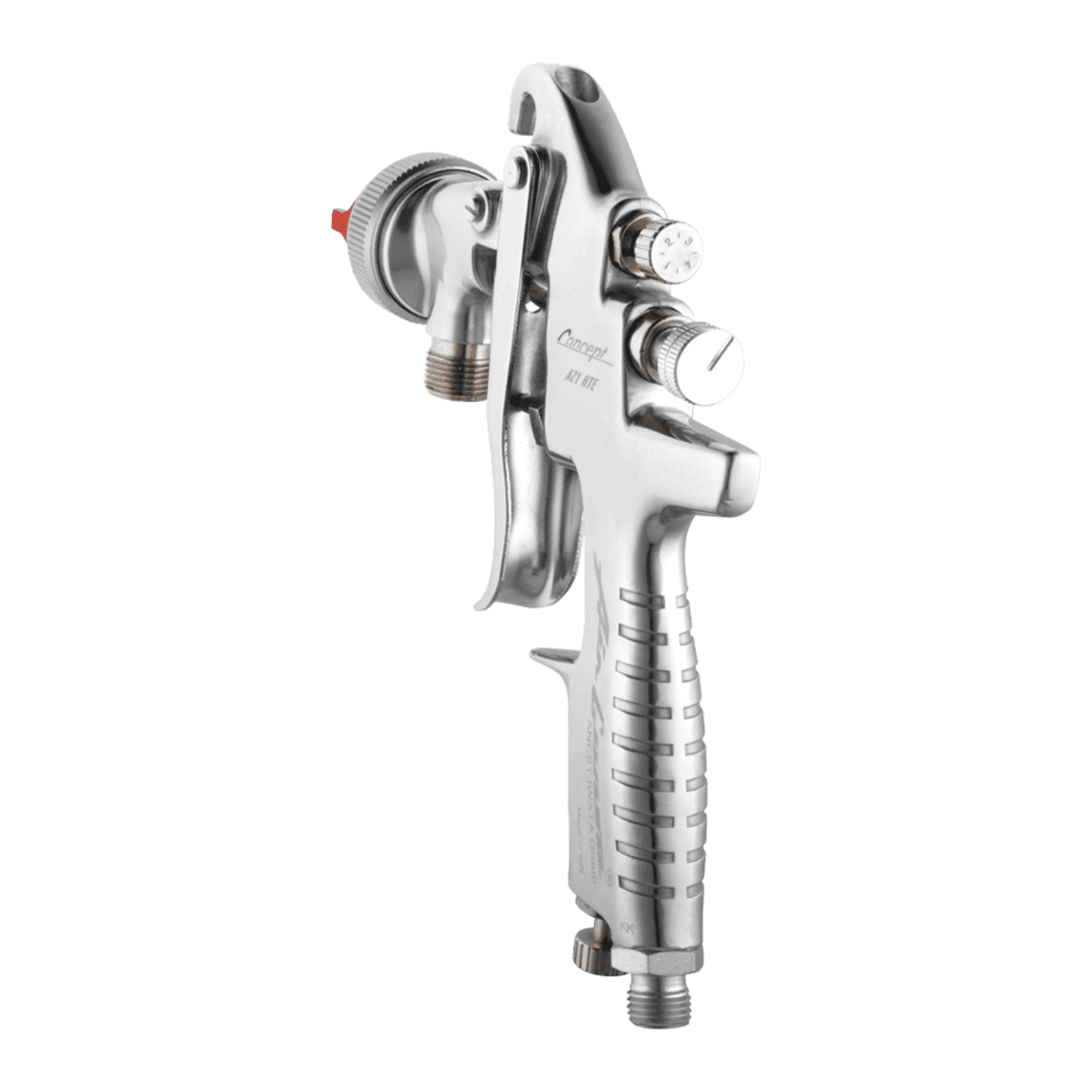

Anest Iwata Air Gunsa AZ1 HTE 2P Pressure Spray Gun
The AZ1 HTE 2P is a professional-grade pressure-feed spray gun from the Anest Iwata Group's AIR GUNSA range, engineered for superior material transfer and exceptional finish quality. Utilizing High Transfer Efficiency (HTE) technology, this gun is designed to minimize material waste and deliver a consistent, high-quality spray for a wide range of coatings, including paints and lacquers.
Core Technology and Key Features
The AZ1 HTE 2P is built around a newly designed air cap that ensures optimum atomization and pattern control, even when working with heavy materials.
AZ1 HTE 2P Pressure Spray Gun Technical Specifications
| Max. Working Air Pressure | 7.0 bar (100 PSI) |
| Gun Weight (Only) | 476 g (1.05 lbs) |
| Air Connection | G1/4"M |
| Fluid Connection | G1/4"M or G3/8"M |
| Atomization Technology | HTE (High Transfer Efficiency) |
Performance Versatility: Short and Long Pattern Options
The AZ1 HTE 2P is highly versatile, offering different configurations optimized for specific coverage needs and materials. It accommodates a wide range of fluid tips, from fine detail work up to heavy material application (1.0 mm to 3.5 mm).
| Pattern Type | Nozzle Range (Ø mm) | Air Cap (Code) | Air Consumption (Ne/min) | Max Fluid Output (ml/min) |
| Short Pattern | 1.0 / 1.3 | HTE-PO | 220-230 | 184 |
| Short Pattern | 1.5 - 3.5 | HTE-P4 | 240-333 | 290 |
| Long Pattern | 1.0 / 1.3 | HTE-P2 | 390-416 | 400 |
| Long Pattern | 1.5 - 3.5 | HTE-P3 | 333-410 | 330 |
Notice: Due to current demand, delivery of Spray Guns may take longer than expected (usually up to 1 week). We sincerely apologise for any delay and will infrom you if delivery is liekly to be longer.
- CE/EX Compliant: Marked for compliance in explosive potentially hazardous atmospheres.
- Gravity Feed System: Offers smooth paint supply
- Ergonomics: Designed for simple operation of the control knobs, accommodating both right- and left-handed users.
- Viscosity Capability: Built as a robust spray gun suited for materials with high viscosity.
- High Transfer Efficiency (HTE): Ensures optimal material transfer and efficiency.
