Anest Iwata Air Gunsa W-200 Integra Pressure Spray Gun Series
The Anest Iwata W-200 Integra Pressure Spray Gun Series is the sophisticated successor to the classic W-200 line, with completely redesigned and improved internals. Built according to innovative painting technologies, the W-200 Integra meets the widest range of demands in the Automotive and General Industry sectors.
This pressure-feed gun series is available in two core versions, easily identified by their air cap ring color, which defines their underlying atomization technology.
Crucial Technology Difference: SP vs. FT
The W-200 Integra is differentiated primarily by its nozzle and air cap technology:
| Technology | Model Name | Air Cap Ring Color | Nozzle Type |
Primary Application/Benefit |

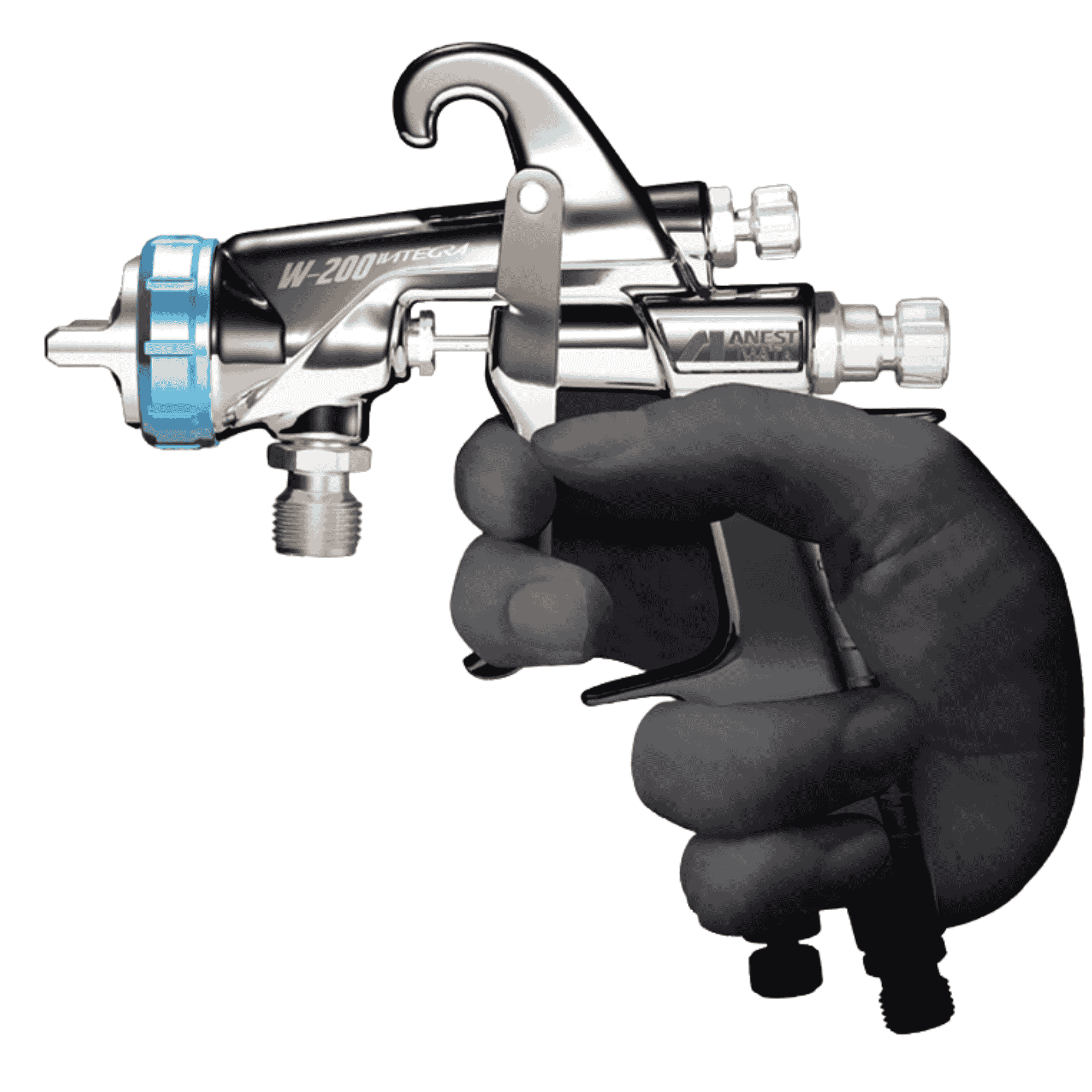

| Split Nozzle™ | W-200 Integra SP | Blue | Pre-Atomization | High-quality, fine-finish work (e.g., basecoats, blending, waterborne), providing a highly homogeneous spray. |

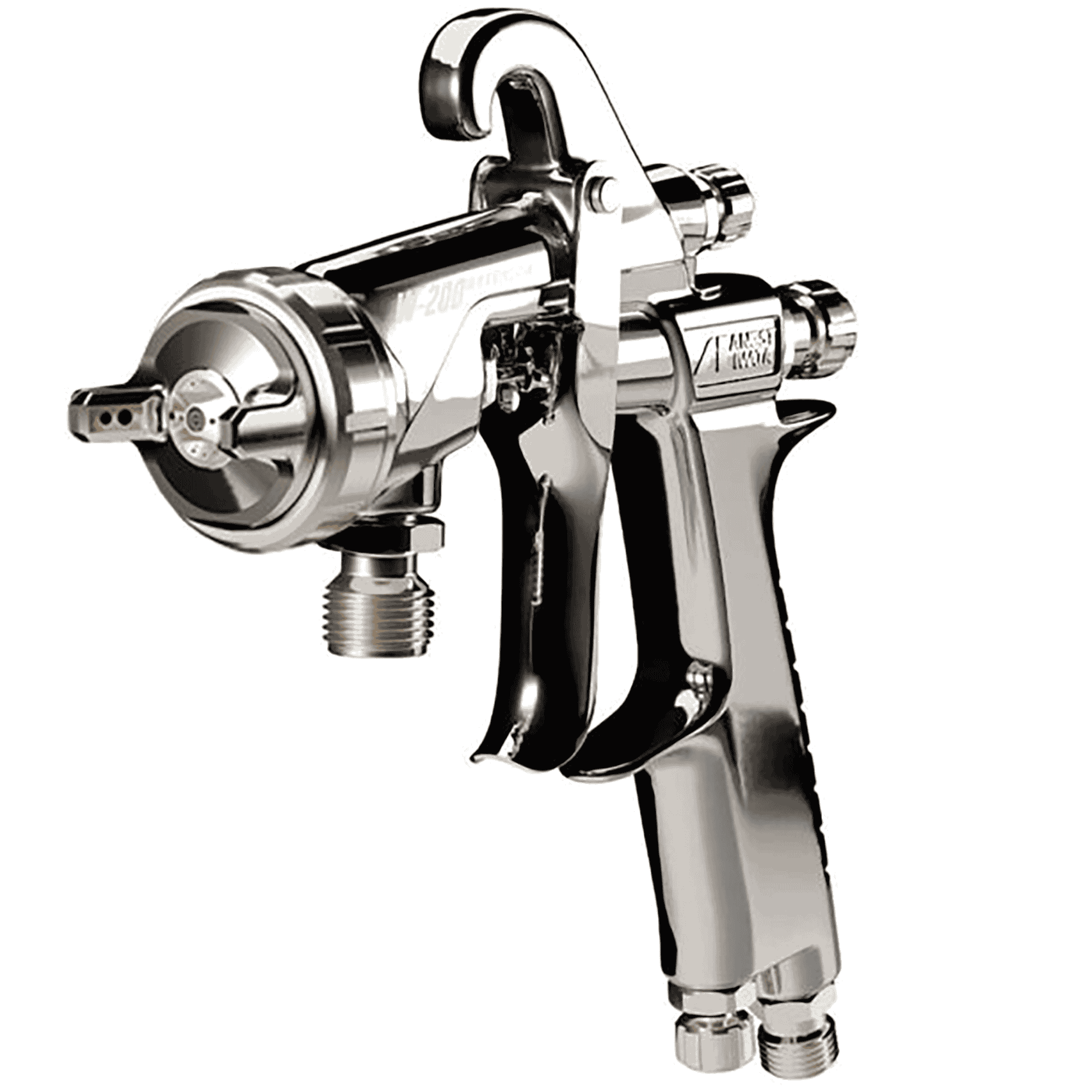

| Flat Tip (FT) | W-200 Integra FT | Silver | Traditional Flat Tip | General purpose and high-volume industrial paint application. |
Air Cap Technology Breakdown (G2P, LV2, WB1, WBS, WB2)
The air cap model determines the gun's performance profile, balancing air pressure and consumption for different material types and applications:
| Air Cap Code | Technology | Inlet Pressure (bar) | Air Consumption (l/min) | Application Focus |
| G2P | General Purpose | 3.0 – 3.5 | 500 – 583 | Designed for high material volume (up to 500 ml/min) and high velocity, suitable for fast coverage with general industrial coatings. |
| LV2 | Low Volume | 2.0 – 2.5 | 240 – 300 | Engineered for low air consumption, offering excellent transfer efficiency and control, ideal when air volume is a constraint or for medium viscosity work. |
| WB1/WBS/WB2 | Waterborne Split Nozzle | 2.0 – 2.5 | 425 – 578 | Split Nozzle caps (SP models) specially tuned for the optimal atomization of modern Waterborne paints, maximizing material transfer and minimizing background noise/overspray. |

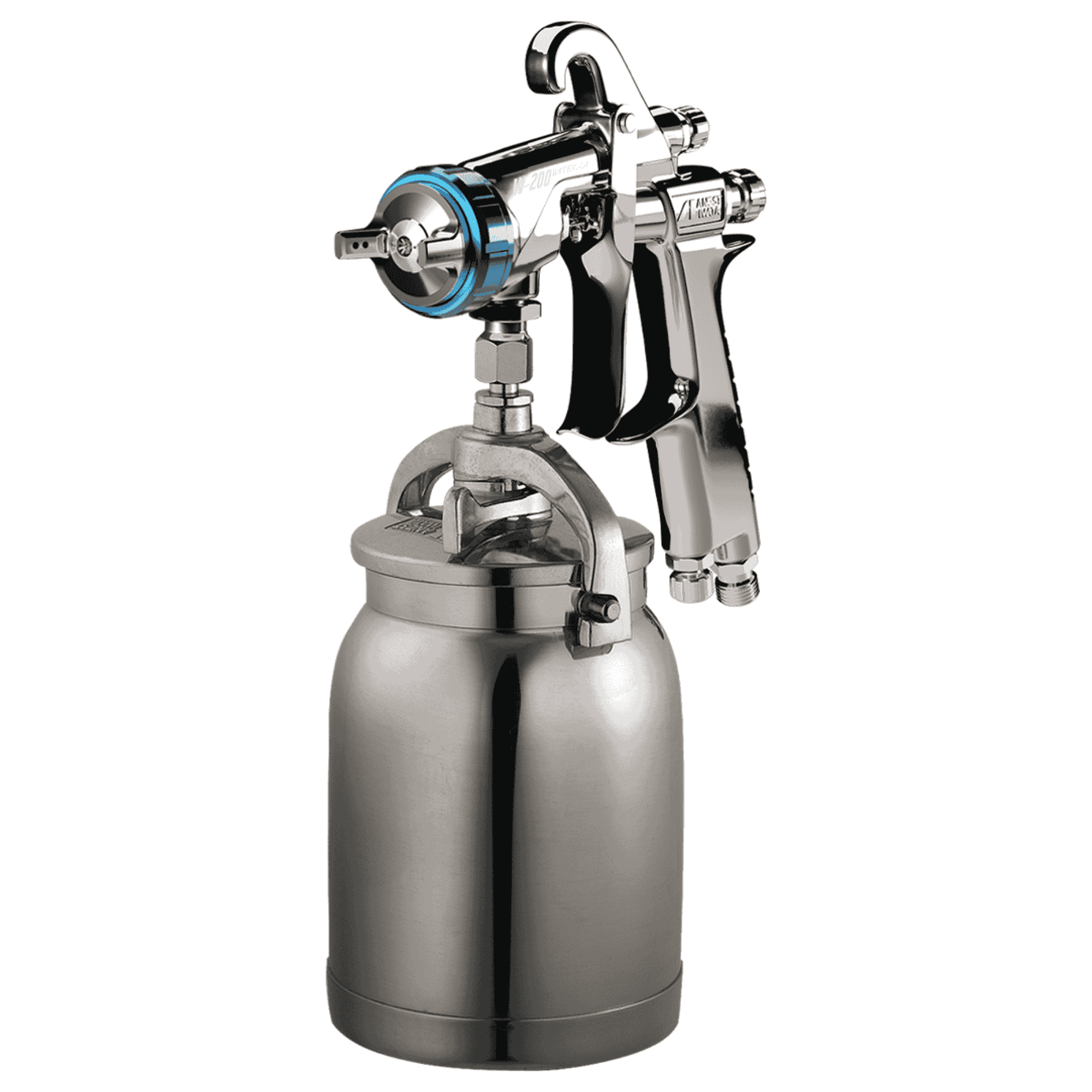

Suction Model Cup Differentiation (W-200 Integra Suction Series)
While the listed model is pressure-fed, the manual covers the suction versions, which use different cup containers:
| Suction Cup Model | Capacity | Connection/Mechanism | Differentiation |
| PCL-10B3 | 1.0 Litre | Lever Lock Suction Container | Features a quick, lever-lock mechanism for faster, more secure attachment to the gun body. |
| PC-12 | 1.0 Litre | Standard Suction Container | Features a traditional, standard screw-on attachment. |
Technical Specifications (W-200 INTEGRA)
| Max. Working Air Pressure | 7.0 bar (100 PSI) |
| Gun Weight (without cup) | 375 g (0.83 lbs) |
| Noise Level (LAeqT) | 80 dB(A) |
| Air Connection | G1/4" (NPS1/4) |
| Fluid Connection (Pressure) | G3/8" (NPS3/8) |
| Suggested Spray Distance | 150 – 300 mm |
- Enhanced Durability – Twilight Chrome plating ensures long-lasting wear resistance
- Optimized Compatibility – G3/8” fluid nipple for maximum versatility
- Ergonomic Design – Smooth & responsive trigger action reduces hand fatigue and strain
- Improved Fluid Control – New bushing mechanism for balanced, precise fluid adjustment
- Nozzle Size: 0.8 mm to 2.5 mm
