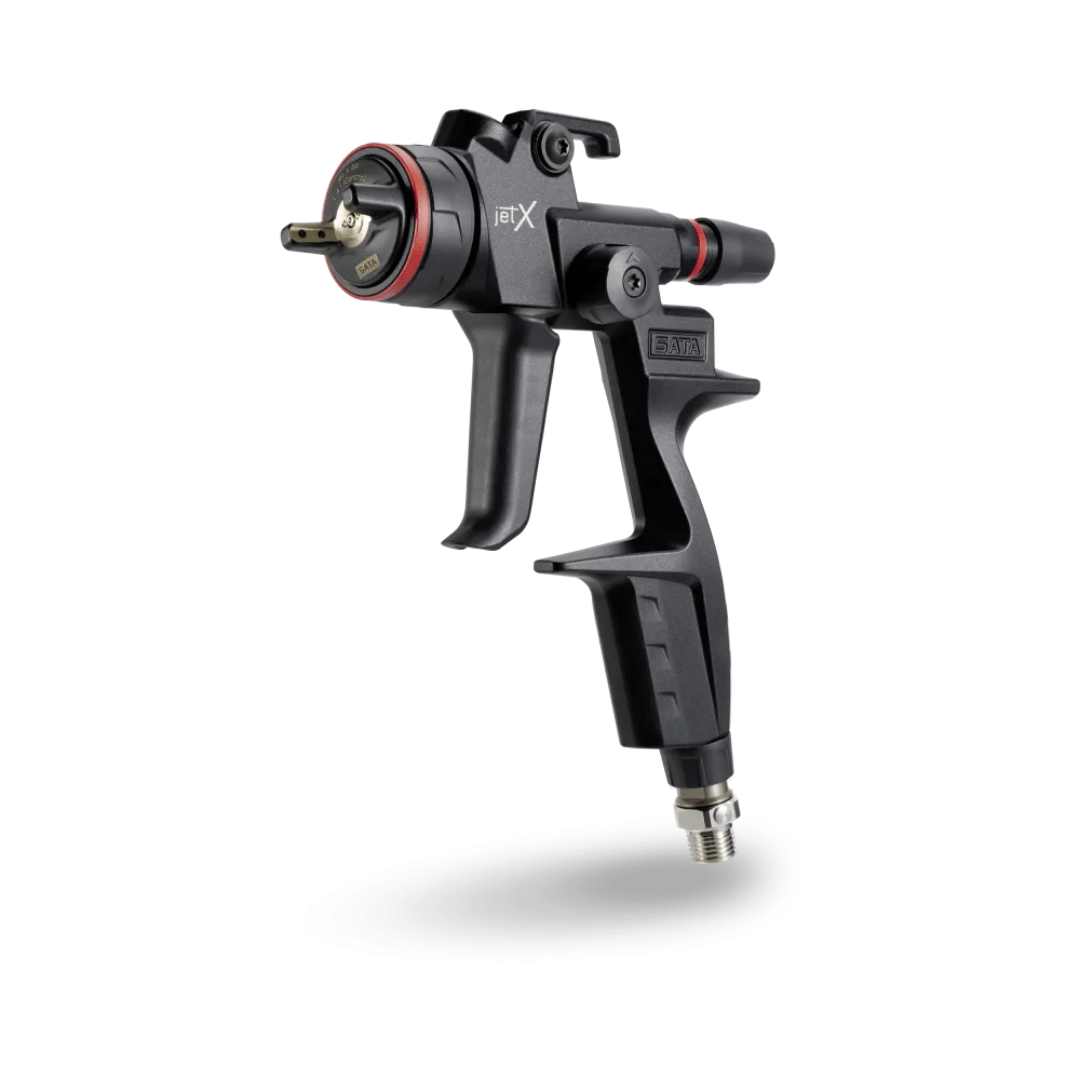

SATA Jet X Non-Digital Gravity Fed Spray Gun (1.2mm I-Nozzle RP)

The SATA Jet X Basic is a high performance gravity fed spray gun engineered for professional painting applications. As a non digital model, it offers a reliable and traditional approach for painters who prefer a straightforward, manual setup. Built to the rigorous standards associated with the SATA brand, this spray gun delivers consistent and precise atomisation for a wide range of paints, varnishes, and liquid media, ensuring an excellent surface finish for every project.

Designed for efficiency and operator comfort, the Jet X Basic has a balanced weight of 460 grams, which helps reduce fatigue during extended periods of use. It is fully certified for use in explosive atmospheres, meeting Ex zone 1 and 2 requirements, provided correct grounding is maintained. The gun is constructed for durability and requires simple, routine maintenance to preserve its performance. Whether you are working in automotive refinishing or industrial coating, this tool provides the stability and control necessary for professional results.

Key Technical Notes:

• Pressure Configurations: The gun operates within an inlet range of 0.5 to 2.4 bar. For HVLP compliant setups, ensure the air cap pressure is maintained at greater than 0.7 bar (or 10 psi).

• Air Consumption: The air requirement depends on the version (RP or HVLP). The RP model consumes 325 Nl/min at 2.0 bar, while the HVLP model consumes 430 Nl/min at 2.0 bar.

• Safety Requirements: Only use antistatic and solvent resistant compressed air hoses that have a permanent pressure resistance of at least 10 bar.

• Grounding: Always ensure the spray gun and the object you are painting are grounded to prevent potential risks associated with explosive atmospheres.

• Cleaning: Never immerse the spray gun in cleaning agents, as this can force fluid into the air channels and damage the device. Use neutral cleaning agents with a pH value between 6 and 8.
